DISMANTLING JOINT / DOUBLE FLANGE FITTINGS

Developed for Complete Versatility

The Dismantling Joints are double flanged fittings that accommodate up to 100mm (4”) longitudinal adjustment and can be locked at the required length with the tie bars supplied. Not only does this system allow for fast, easy maintenance of valves, pumps or meters, it simplifies future pipe work modifications and reduces downtime when changes need to be made.

Easy to Install

The installation is also straightforward using just a spanner and torque wrench to tighten the high tensile steel or stainless steel tie bars. With fewer tie bars than flange holes and the tie bars acting as flange jointing bolts the process is speeded up but still offers a secure, rigid, fully end load resistant system with a pressure rating equal to that of the flange.

Dismantling joints are particularly suitable for simplifying the installation and removal of all kind of valves, pumps and flanged pipes and fittings. Typical applications include pumping stations, water treatment works, sewage treatment w o r k s , p l a n t r o o m s , m e t e r chambers, power generation equipment and gas distribution stations.

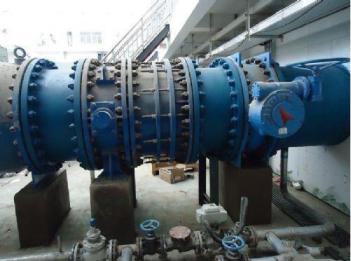

dismantling joint


The Range

A comprehensive range is available from DN40 (1½”) to DN2400 (80”) with virtually any flange drilling or pressure rating supplied, although larger sizes and custom made Dismantling Joints can be designed and built on request.

Flanges can be drilled to suit various international standards like ISO, DIN, BS and ANSI for pressure classes PN 10, PN 16, PN 25 and PN 40

FOR FUTHER INFORMATION PLEASE CONTACT :
PT. STEELINDO PERSADA
Email    : marketing.steelindopersada@gmail.com
